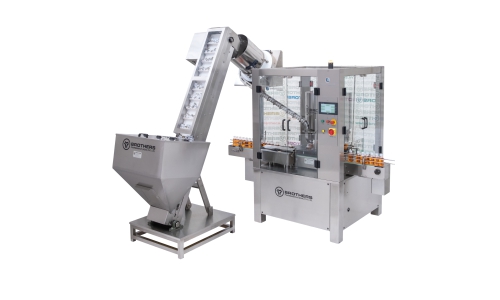

CAPSEAL-120R
The Automatic Six Head Rotary Bottle Capping Machine Model
CAPSEAL-120R for ROPP Cap. Machine is suitable for Round or
other shape of Glass, Plastic, PET, LDPE, HDPE Bottles with
maximum speed of 100 Bottles per minute depending on Bottle
Diameter, Bottle Height, Bottle Shape and Cap Size. Specially
Machine construction in Stainless Steel finish including machine
M.S. frame structure with Stainless Steel Cladding/Enclosures.
The Capping Machine is ideal for application in Pharmaceutical,
Food, Pesticides, Cosmetic & Other Industries.
The Machine is equipped with Orientation type Cap Feeder or
Vibratory type Bowl Feeder depending on cap shape and size for
continues feeding of Cap for online operation on any liquid or
powder filling line. Machine suitable for various sizes of Bottles
and ROPP Cap with the help of change parts. Capping Machine is
suitable for application in Pharmaceutical and other Industries
requiring higher production speed on automatic online operation.
Technical Specifications
| Bottle Size | Diameter Up to 85mm* or other Shape bottle with proper base |
| Bottle Height | 300mm* Maximum |
| Cap Size | Upto 32mm* |
| Electrical | 415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive |
| Power | 3.0 H.P. |
| Conveyor Height | 850-900 mm |
| Overall Dimensions | 2000 mm (L) x 1100 mm (W) x 2000 mm (H) |
| Speed | Max. 100 Bottles per minute depending on Bottle and Cap Size |
| * Specification can be changed as per customers requirements | |
SPECIAL FEATURES
- No Bottle - No Cap System
- No Cap - Machine Stop System
- Machine construction in Stainless Steel Finish
- In-feed and Exit Star Wheel with Overload Clutch System to avoid Bottle breakage
- Single Drive Synchronizing Total Operation of Star Wheel and Turret with Star Wheel
- Cap Feeder with Variable Speed System for feeding control of caps.
- Minimum Change Over and Setting time
- Various safety features including Clutch system to avoid Bottle Breakage
- Single Drive synchronizing operation of Conveyor and Star Wheel
×
