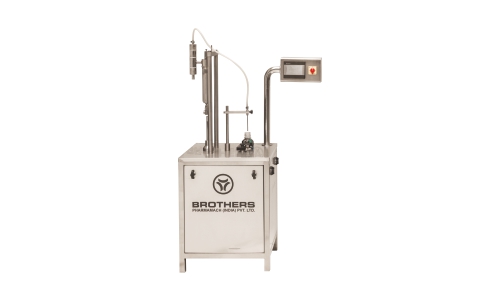

Semi Automatic Twin Head Volumetric Filling Machine LIQFILL-20

Semi Automatic Volumetric Liquid Filling Machines or Semi Automatic Twin Head Volumetric Liquid Filling Machine Model LIQFILL- 20 is suitable for Round or Flat shape Bottles or Vials with maximum speed of 20 Products per minute.

Bottle Loading and Unloading is Manual by Operator. The Machine can give speed of 15-20 Bottles per minute depending on nature of Liquids, Neck Diameter or Bottle and Fill Volume. Machine suitable for small volume production having multiple products.

Machine construction in Stainless Steel finish with Twin Head Operation. All parts coming in contact with Liquids are made from S.S. 316 Material. Machine require settings within Syringe or Set of Syringe as a change parts for different fill volume.

  • Category : Liquid Filling Machines
  • Modal : LIQFILL 20

Technical Specifications :

Fill Range : Set of Syringe available in different Fill Volume Range.

- 1ml to 5ml

- 2ml to 10ml

- 10ml to 50ml

- 30ml to 100ml

- 100ml to 250ml

- 250ml to 500ml

Accuracy : +/- 1% Depending on Liquid with Single Dose, Fill Volume and type of Liquid.

Speed : Max. 15-20 per minuite


Utility Requirement :

Electrical : 220 VAC Single Phase Power Supply (50 Hz)

Power : 1.0 Hp

Specification can be changed as per customers requirements

Special/Optional*Features :

- No Bottle - No Fill System

- Ideal for Clear Free Flow Liquid

- All contact parts are made of S.S. 316 material with easy removal system

- Machine construction in S.S. 304 material

- Very High Fill Accuracy

- Minimum Change Over time


Other Available Models

LIQFILL-80e LIQFILL-80 LIQFILL-80FM LIQFILL-160
LIQFILL-160.Motion LIQFILL-120.FM LIQFILL-120 LIQFILL-60e
LIQFILL-250.Motion LIQFILL-150.FM LIQFILL-120.MB LIQFILL-20e
VACFILL-250.MBL LIQFILL-240.FM LIQFILL-120e LIQFILL-220
LIQFILL-150.MBS LIQFILL-300.FM
