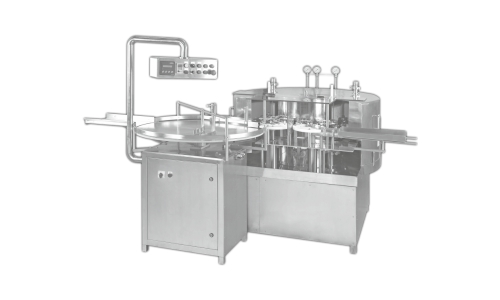

VIALWASH-120R
The Volumetric Liquid Filling Machine is widely used in pharmaceutical manufacturing to ensure accurate liquid filling with high efficiency and hygiene standards. In a pharmaceutical processing line, vial preparation is a crucial step before the filling process, and machines like VIALWASH-120R play an important role in ensuring properly cleaned containers. The Automatic Rotary Vial Washing Machine Model VIALWASH-120R is specially designed to wash vials with minimum contact between machine parts and the vials. The machine features a specially designed gripper system that holds the vial from the neck, inverts the vial during the washing process, and releases it on the out-feed star wheel system in a vertical position after washing, ensuring effective cleaning. The machine is suitable for 2 ml to 50 ml vials, and with change parts it can also support 100 ml vial sizes. Vials are fed through a turntable to the in-feed star wheel where the gripper holds the vial from the neck and moves it through the rotary washing system. During operation, the vials travel in a neck-down position above washing needles and move along with the needle bar, providing maximum washing time once the needle enters the vial neck. The rotary vial washing machine includes six different washing stations, each equipped with three needles for optimum washing, and the washing sequence can be changed as per customer requirements. The machine also includes an external washing facility to ensure complete and effective cleaning of vials before they move to the volumetric liquid filling process.
Technical Specifications :
| Suitable for | 2ml to 50ml* Vials with the help of change parts |
| Type of Washing | Rotary Continues Motion Washing |
| Vial Diameter | 14 mm to 52 mm Maximum |
| Vial Height | 32 mm to 105 mm Maximum |
| Air Consumption | 30 CFM |
| Water Consumption | 250 to 500 Litre per hour depending on Vial Size |
| Washing Zone | Six zone can be set as per required sequence |
| Water Tank & Pump | 2nos. Each with 25 Ltrs. Capacity & Centrifugal pump |
| Speed | Max. 120 Vials per minute depending on Vial Size |
| Conveyor Height | 875-950 mm |
| Overall Dimensions | 2450 mm (L) x 2100 mm (W) x 1575 mm (H) |
| * Specification can be changed as per customers requirements | |
Utility Requirement :
| Filtered Compressed Air | 5 to 7 Bar Air Pressure |
| Electrical | 415 VAC 3 Phase 50Hz and 220 VAC Single Phase Power Supply (50/60 Hz) |
| Power | 3 Hp |
| Customer also required to provide Water / D.M. Water etc. and also Line connection up to Machine tank | |
Special Features :
- 18 Jets for 6 Internal washing zones
- 4 External Washing Station
- All contact parts made of SS 316 material
- Machine construction in SS 304 Material
- 10 Cassette of Grippers each having 3 Grippers
- Suitable for 2ml to 50ml and in special design upto 100ml size
- Washing sequence can be made as per customers requirements.
- Optionally available 2 Pumps and 2 Tanks
- Each washing zone with independent circuit to avoid contamination
- Automatic In-feed and Exit of Vials
×
