Automatic Outserter (Leaflet/PIL) Pasting Machine for Side Application

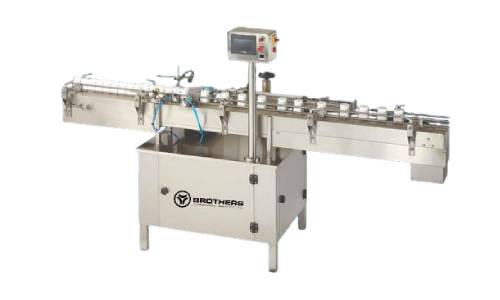

Automatic Single Head Leaflet / Outserter Pasting Machine

The Automatic Single Head Leaflet / Outserter Pasting Machine Model AHLI- 60S , is suitable for Round, Rectangular or Square Shape Bottles with maximum speed of 50 Bottles per minute to apply Leaflet on any Side of Bottles. Specially Machine construction in completely Stainless Steel finish including machine frame structure with Stainless Steel Enclosures.

The Machine is suitable for applying various Sizes and thickness of Leaflet on Bottles of with speed up to 50 bottles per minute depending on Bottle Diameter/Width, Bottle Height and Leaflet Size for use on Tablet Bottle Packing Line for Online operation. Machine can Paste / Fix the Leaflet on SIDE of the Bottles. Machine can be connected with any Bottle Packing Line for using it online. Machine suitable for various sizes of Bottles as well as Leaflet.

Machine does not require change parts for change in bottle size and Leaflet size. Customer may require few items for any special size of leaflet as a change parts.

Other Model also available to apply leaflet on Top side of bottles with speed up to 50 Bottles per minute. Machine with various optional as well as Standard features, and with unique features of No Glue No Leaflet system. Machine available with Online Hot Melt Gluing System as a optional items, if require we can supply the machine without online gluing system also.


  • Category : Leaflet Outserter Pasting Machine
  • Modal : AHLI-60s

Technical Specifications :

Bottle Diameter : Up to 125mm* and other shape on request

Bottle Height : Up to 225mm*

Leaflet Size : Samples required

Electrical : 415VAC 3Phase and 220 VAC Single Phase Power Supply (50-Hz) with A.C. Drive

Power : 2.0 Hp

Conveyor Height : 815-850 mm

Overall Dimensions : 2000 mm (L) x 600 mm (W) x 1200mm (H)

Speed : Max. 50 Bottles per minute depending on Bottle and Leaflet Size Require Filtered Compressed Air and Suitable Hot Melt Adhesive with required Drying time is to be provided by customer only.

Note:- Specification can be changed as per customers requirements

Optional Features :

- Online Camera System for detection of Missing Barcode/Pharmacode/2D code or Leaflet on Bottle

- Online Bottle Rejection System for Wrong Leaflet or Missing Leaflet

- Stainless Steel Construction Safety Cabinet with Toughened Glass or Acrylic

- Hot Melt Gluing System for Online Glue Application

- 21CFR Compliance


Other Available Models

AHLI-100 AHLI-120R AHLI-150 OCTOPUS-300

Special Features:

- Colour Touch Screen Operation Panel

- No Air - Machine Stop System

- Machine works on Compressed Air - No Vacuum required

- No Bottle - No Leaflet Pasting System

- No Glue - No Leaflet Pasting System

- No Leaflet in feeder - Machine Stop System

- Machine construction in Stainless Steel Finish

- Single Drive synchronizing operation of Conveyor, Bottle Feeding and Leaflet Pasting

- Minimum Change over time

- No Change Parts for Change in Bottle Size and Leaflet Size. Leaflet Sample require to workout any extra change parts if required due to special size of leaflet.
